Hotchkis

Hotchkis 64-66 GM A-Body TVS Stage 2 Suspension System w/ Big Block

SKU HOT89001-2
$5,600.66
$5,040.59

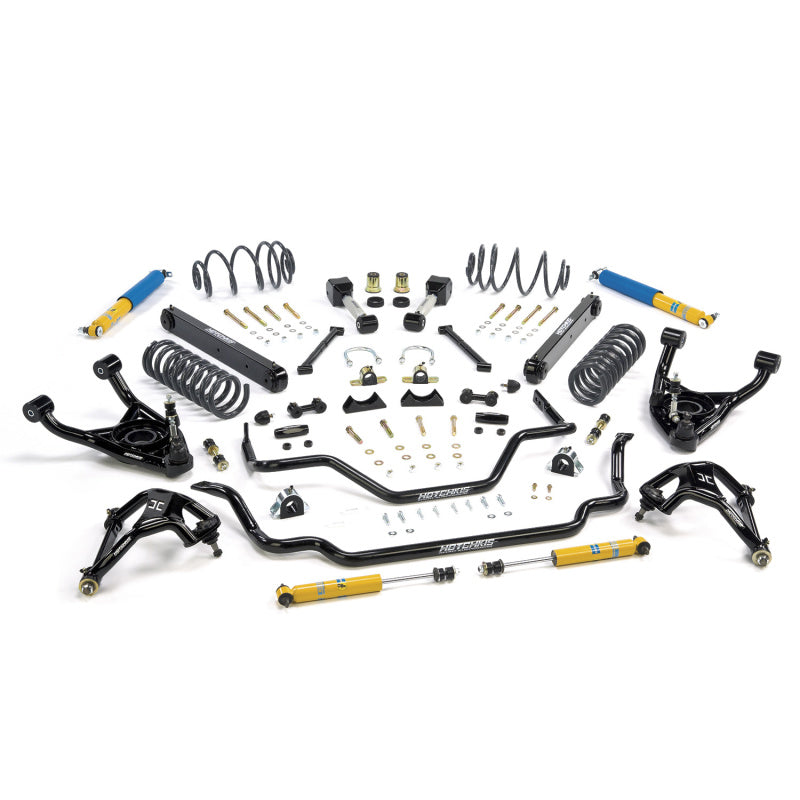

Hotchkis Sport Suspension 89001-2 Stage 2 Extreme TVS Kit for 64-66 Chevrolet Chevelle El Camino and Malibu Oldsmobile 442 and Cutlass Buick Skylark Pontiac LeMans GTO and Tempest with Big Block motors. Includes Tubular Upper and Lower Control Arms Heavy Duty Tie Rod Sleeves adjustable 1 3/8 in. Front and 1? in. Rear tubular Sway Bars 1 in. Lowering Springs Front and Rear Hotchkis Tuned/FOX Shocks adjustable Upper Trailing Arms Boxed Lower Trailing Arms Mount Braces Grade 8 Hardware and Bushings. For the ultimate handling GM A-Body car nothing beats the Hotchkis Sport Suspension Stage 2 Total Vehicle System. This kit has been rigorously designed and tested on the track yet is very comfortable for your local cruise in. Every aspect of the suspension has been re-engineered for the maximum performance and is being offered in a complete tuned package. In front we start out with Tubular Upper and Lower Control Arms which increase caster and improve the camber curve increasing front end grip and traction. Heavy duty tie rod sleeves hold the alignment while 1 in. lowered sport springs and Hotchkis Tuned/FOX shocks improve vehicle control and stance. A massive 1 3/8 in. front sway bar and 1? in. adjustable rear sway bar reduce body roll and improve handling. To improve traction and reduce wheel hop the rear receives a upgrade to the existing 4 link suspension. Massive 1.5 in. adjustable upper trailing arms allow for pinion angle changes to improve launches while the super strong 1.5 in. rectangular tube lower trailing arms maximize traction by reducing flex allowing power to be transferred to the tires. Grade 8 hardware and greasable bushings are included along with special trailing arm mount braces designed to stiffen the chassis and reduce flex. Note: This installer friendly bolt on kit lowers the vehicle an average of 1 in. from original factory ride height.(Cars with aluminum heads fiberglass hoods or Pontiac motors use small block kit).

This Part Fits:

Year Make Model Submodel
1964-1966 Buick Skylark Base
1965-1966 Chevrolet Chevelle Base
1964-1966 Chevrolet Chevelle SS
1966 Chevrolet El Camino Base
1965-1966 Chevrolet Malibu Base
1965-1966 Oldsmobile 442 Base
1964-1966 Oldsmobile Cutlass Base
1964-1966 Oldsmobile Cutlass Holiday
1965-1966 Oldsmobile F85 Base
1966 Oldsmobile F85 Holiday
1964-1966 Pontiac GTO Base
1964-1966 Pontiac LeMans Base
1964-1966 Pontiac Tempest Base
1964-1966 Pontiac Tempest Custom
1963-1965 Pontiac Tempest Safari
$5,600.66
$5,040.59
