Hotchkis

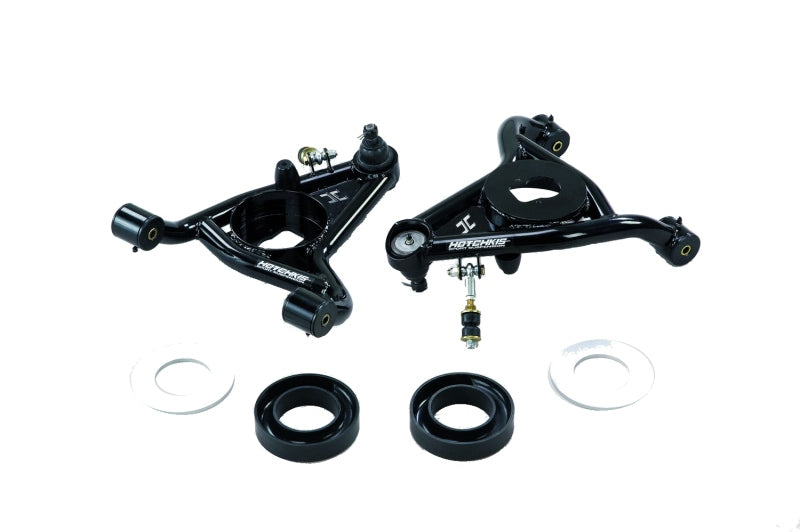

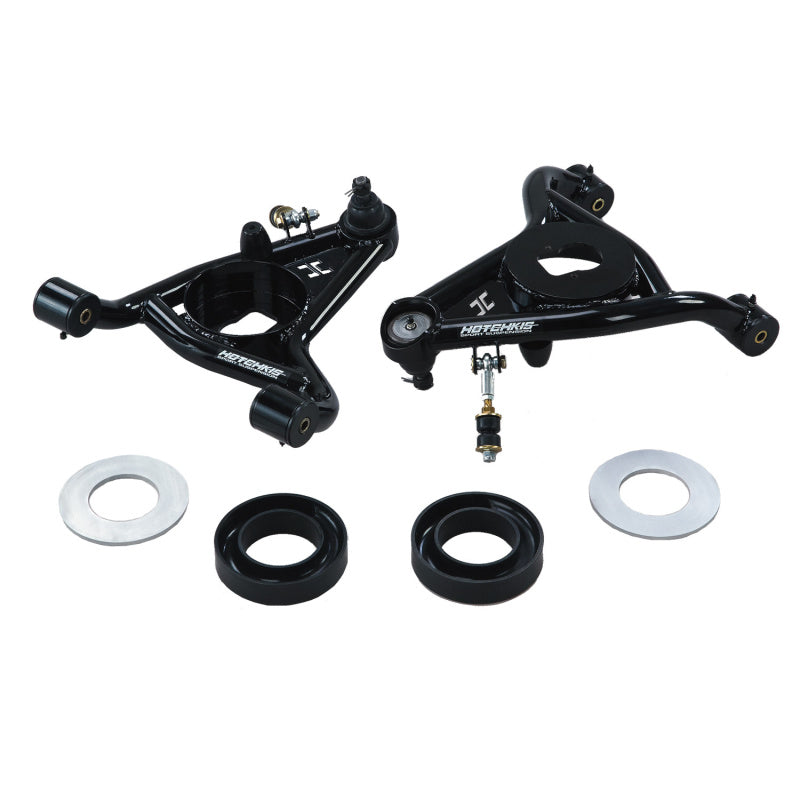

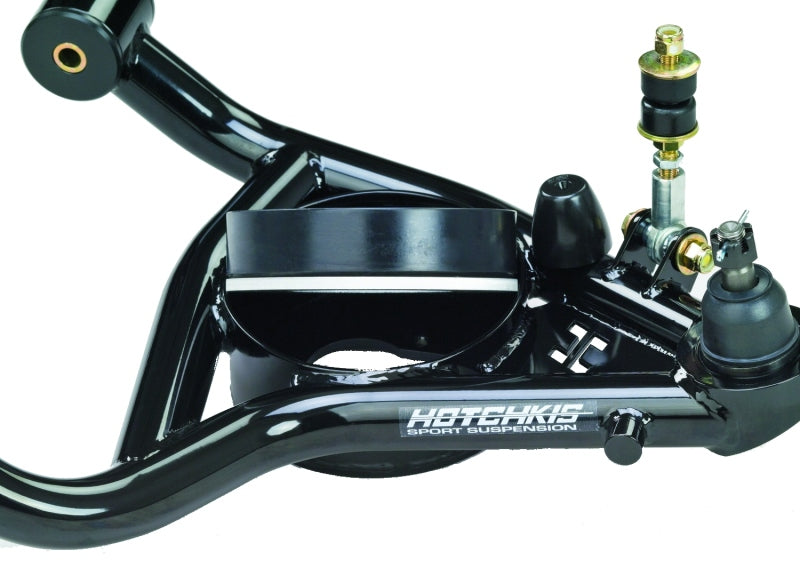

Hotchkis 70-81 Camaro/Firebird Tubular Lower A-Arms

SKU HOT1108
$1,179.99

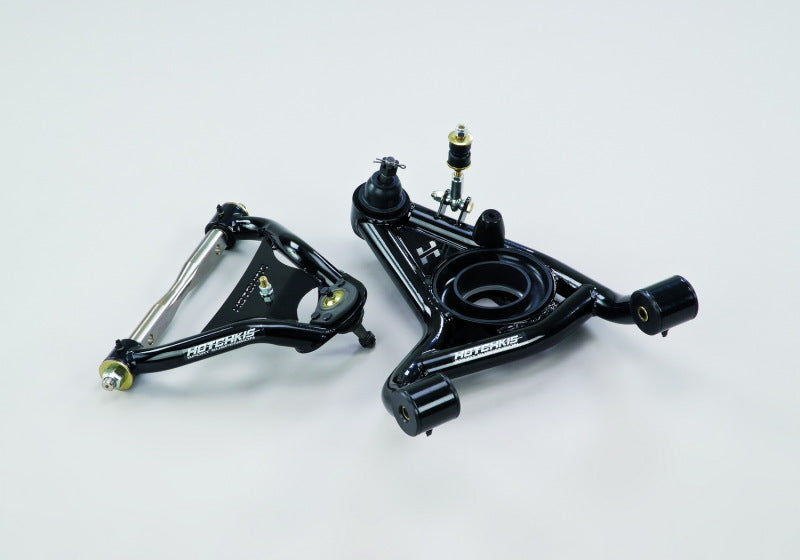

Install the Hotchkis Sport Suspension geometry corrected Tubular Lower A-Arms on your 70-81 Camaro or Firebird and gain vastly increased handling and control. These TIG-welded bolt-on have re positioned ball joints for increased caster and improved camber curve resulting in improved stability and traction. Adjustable shims offer ride height adjustment for ultimate performance and a great look regardless of engine and transmission combinations. Smooth operating Delrin bushings allow the arms to move through their travel easily. Finished in gloss black powder coat the arms are ready to install and are complete with ball joints bump stops ride height shims polyurethane coil spring locators and Delrin bushings. Exceptional handling performance when combined with the Hotchkis Sport suspension geometry corrected Tubular Upper A-Arms. New Lower Prices Features: Geometry corrected design. Built in - 0.6 deg of Camber 2 deg of Caster 100% TIG-welded 1.5 in. tubular steel construction. CNC machined inset spring cup. Precision aluminum ride height adjustment shims and polyurethane coil spring isolators. Easy to lubricate Delrin bushings. Lower ball joint installed. Laser cut Hotchkis logo Gloss black powder coat finish Made In USA Benefits: CAD designed and analyzed by FEA software for ultimate strength and efficiency. Increased structural rigidity due to CNC machined inset spring cup. Aluminum shims allow for .25 in. to .50 in. ride height adjustment. Additional shims available separately. Delrin bushings allow smooth operation with minimal deflection through travel range. Achievable specs when using 1106 upper control arm and 1108 lower control arm. MAX Caster with Uppers and Lowers = 9 deg MAX Camber with Uppers and Lowers = - 3.5 deg

This Part Fits:

Year Make Model Submodel
1973 Buick Apollo Base
1970-1980 Chevrolet Camaro Base
1979-1981 Chevrolet Camaro Berlinetta
1973-1978 Chevrolet Camaro LT
1976-1978 Chevrolet Camaro LT Rally Sport
1976-1980 Chevrolet Camaro Rally Sport
1970-1973,1975 Chevrolet Camaro RS
1981 Chevrolet Camaro Sport
1970-1972 Chevrolet Camaro SS
1970-1974,1977-1981 Chevrolet Camaro Z28
1975-1979 Chevrolet Nova Base
1976-1977 Chevrolet Nova Concours
1975,1978-1979 Chevrolet Nova Custom
1975 Chevrolet Nova LN
1975-1978 Chevrolet Nova Police
1977-1979 Chevrolet Nova Rally
1976 Chevrolet Nova SS
1970-1981 Pontiac Firebird Base
1970-1981 Pontiac Firebird Esprit
1970-1981 Pontiac Firebird Formula
1970-1981 Pontiac Firebird Trans Am
$1,179.99
