Hotchkis 70-81 Camaro/Firebird Tubular Upper A-Arms

SKU HOT1106
$949.99

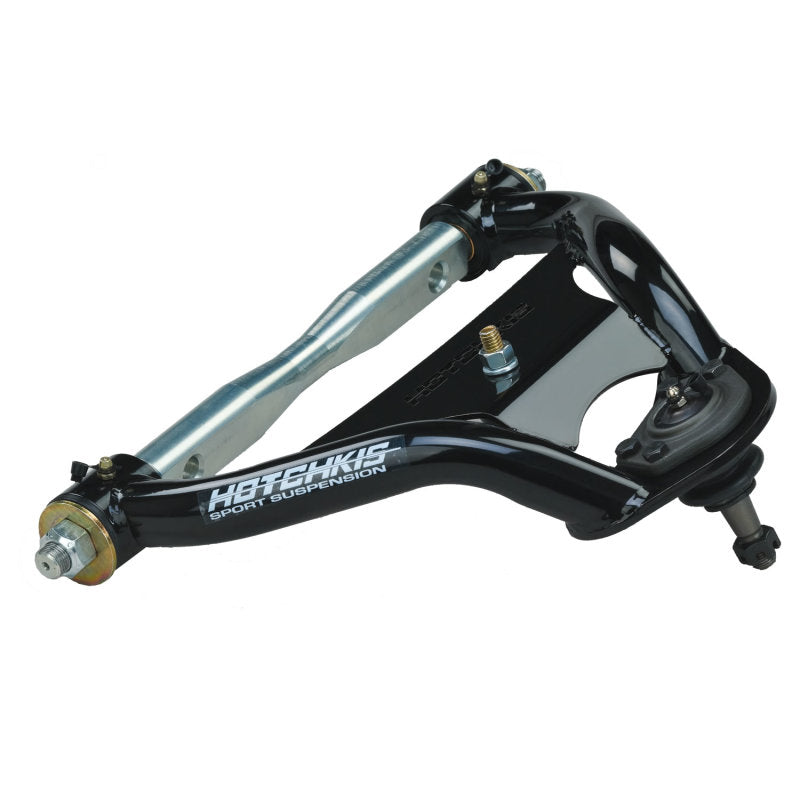

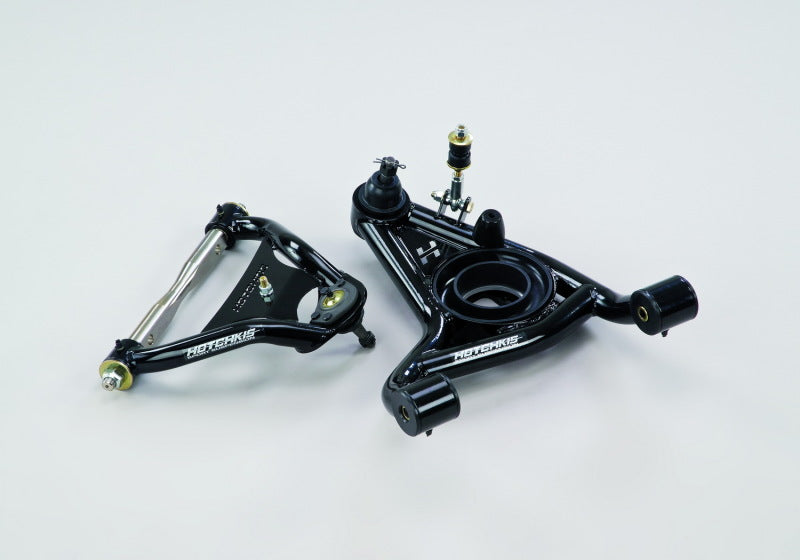

Hotchkis Sport Suspension 1106 1970-1981 Camaro/Firebird Tubular Upper A-Arms. Install the geometry corrected Hotchkis Sport Suspension Tubular Upper A-Arms on your 70-81 Camaro or Firebird and gain vastly increased handling and control. These TIG-welded bolt-on arms offer increased camber and caster adjustment over stock for ultimate driving performance. Finished in gloss black powder coat the Arms are ready to install and are complete with ball joints offset cross-shafts and smooth operating Delrin bushings. Exceptional handling performance when combined with the Hotchkis Sport Suspension Tubular Lower A-Arms. Features: Geometry corrected design. Built in - 1.1 deg of Camber 5.2 deg of Caster 100% TIG-welded 1.25 in. tubular steel construction. Silver zinc plated 4130 Chromoly billet cross-shaft. Easy to lubricate Delrin bushings. Upper ball joints and polyurethane droop stops installed. Laser cut Hotchkis logo. Gloss black powder coat finish Benefits: Offset Cross-Shaft allows increased static negative camber without a large alignment shim stack. Great for header clearance issues. Increased Caster improves high speed stability and camber gain during turning thereby increasing front tire traction. Smooth operating Delrin bushings allow minimal deflection through travel range. Achievable specs when using 1106 upper control arm and 1108 lower control arm. MAX Caster with Uppers and Lowers = 9 deg MAX Camber with Uppers and Lowers = - 3.5 deg

This Part Fits:

Year Make Model Submodel
1970-1980 Chevrolet Camaro Base
1979-1981 Chevrolet Camaro Berlinetta
1973-1978 Chevrolet Camaro LT
1976-1978 Chevrolet Camaro LT Rally Sport
1976-1980 Chevrolet Camaro Rally Sport
1970-1973,1975 Chevrolet Camaro RS
1981 Chevrolet Camaro Sport
1970-1972 Chevrolet Camaro SS
1970-1974,1977-1981 Chevrolet Camaro Z28
1975-1979 Chevrolet Nova Base
1976-1977 Chevrolet Nova Concours
1975,1978-1979 Chevrolet Nova Custom
1975 Chevrolet Nova LN
1975-1978 Chevrolet Nova Police
1977-1979 Chevrolet Nova Rally
1976 Chevrolet Nova SS
1970-1981 Pontiac Firebird Base
1970-1981 Pontiac Firebird Esprit
1970-1981 Pontiac Firebird Formula
1970-1981 Pontiac Firebird Trans Am
